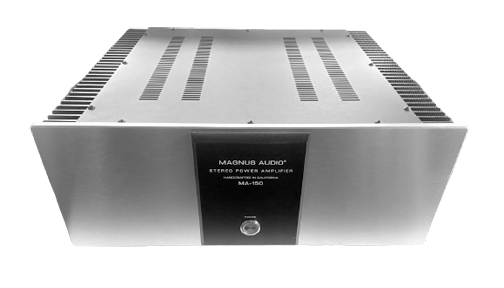

MA-150
Stereo Power Amplifier
(Exclusively Available at Mory Audio)
|
| |
|
| |
The MA-150 is a 2 channel stereo power amplifier with the use of 8 carefully selected and matched Bipolar Power Transistors
(2 paris per channel, 4 pairs in total). With a rated output power of 75 watts per channel at 8 ohms (150 watts per channel at 4
ohms), the MA-150 is capable of driving any loudspeakers even with low efficiency and low impedance.
Each of the MA-150 power amplifier is handcrafted with the use of highest quality parts and components. The audio grade toroidal
transformer is custom wound according to our specifications. Even the heavy-duty special designed heat sinks are custom made in
order to meet our standards.
|
| |
| |
|
| |
MA-150 Highlights
Advance and sophisticated pure Class AB design with supreme sonic performance.
4 pairs carefully selected and matched Bipolar Power Transistors of highest quality.
Custom wound audio grade toroidal transformer with separate windings for
left and right channel.
Custom made heavy-duty heat sinks with special thick rib design ensure a
lower operating temperature.
Sophisticated protective circuit ensures highest operational safety for the
amplifier and the connected loudspeakers.
Integrated power curcuit with time-delay relay to eliminate turn-on thump.
12V trigger sensing circuitry.
Advance layout and wiring techniques guarantee a hum free operation.
Switchable balanced (XLR) and single-ended (RCA) inputs.
Full metal housing for optimum shielding.
100% Handcrafted in California, USA.
Each of the MA-150 power amplifier has a unique serial number for authenticity.
Exclusively available at our Taiwan Distributor "Mory Audio".
|
Specifications
|
|
Rated Output Power: |
75 Watts RMS at 8 Ohms
150 Watts RMS at 4 Ohms
|
|
Frequency Response: |
+/- 0.1 dB from 10 Hz to 50 kHz |
|
Signal-to-Noise Ratio: |
110 dB |
|
Total Harmonic Distortion (THD): |
<0.02%
|
|
Gain: |
27.5 dB (single-ended)
23.5 dB (balanced) |
|
Input Impedance: |
30K Ohms (single-ended)
50K Ohms (balanced) |
|
Input Sensitivity: |
1.25V (single-ended)
2.5V (balanced) |
|
Output Voltage: |
31 V RMS |
|
Damping Factor: |
210 |
|
Power Consumption: |
450W |
|
Standby Power Consumption: |
0.5W |
|

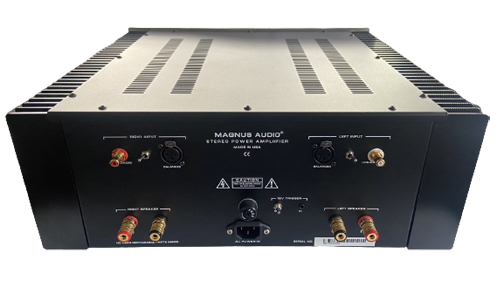

Inputs: |
1 pair balanced via XLR
1 pair single-ended via RCA |
|
Outputs: |
2 pairs high quality binding posts |
|
Dimensions: |
18 in. W x 7.25 in. H x 16.5 in. D |
|
Weight: |
55 lbs. |
|
Warranty: |
2 Years Parts and Labor |
